简介：CAN / CANopen Analyzer Very simple tool for users who need to interface with a device based on CAN (CAN/CANopen/J1939/NMEA2000/DeviceNet) such as motors, sensors and many 其他 devices. L'analyzer is composed of a software tool and by an'interface to the CAN. The device xGate-HD67316...
Very simple tool for users who need to interface with a device based on CAN (CAN/CANOpen/j1939/NMEA2000/devicenet) such as motors, sensors and many 其他 devices.
L'analyzer is composed of a software tool and by an'interface to the CAN.
The device xgate-HD67316-U-D1 has the interface for the USBport and with the xGate-HD67316-E-A1 to the Ethernet . This can allow also to use the Internet, including the software remotely and the hardware device.
As with the xGate-HD67216 you have the RS232 interface, which comes complete with a dll for software on demand.
The devices are supplied with free software CAN Analyzer for MS Windows (MS 2000, XP, Vista, Seven), which can be used for all codes of CAN Analyzer (SW67216).
The CAN Analyzer is a powerful flexible and economic that develops and checks systems based on CAN/CANOpen/j1939/devicenet/NMEA 2000 .
This tool allows the study and configuration of CANOpen systems using a user interface that allows easy access to the devices and their objects.
Finds its increased use as an indispensable tool for the analysis of systems in the automotive industry and automation industry
CAN Analyzer Hardware and Software
( PC Interface port: USB )
-40° to +85°
CAN analyzer software
By the main window of CAN analyzer you can be approached to the varius functions. You can selected the type of CAN bus, standard or extended, and set the baud rate of the net. You can monitoread the net by CAN bus load, and have some LEDs for status indicates. By this windows it is possible access to a varius forms, canopen monitor, CAN monitor, Network manager and CANsender.
Network Manager
This form permits to scan all 节点 or a single node, or permits to scan for available 节点. By this form is possible:
Read and write CAN register;
Change the state of node ID (pre-operational, operational).
CAN Monitor
This form is available in both types of CAN bus (standard and extended). It visualize all CAN bus frame that pass on the net. It visualize the: COB-ID and the data.
CAN Sender
This form is available in both types of CAN bus frame (standard and extended). By this form it is possible send a CAN bus frame. It include:
Cyclic transmit function
Debug function (for transmit only the CAN bus frame you selected)

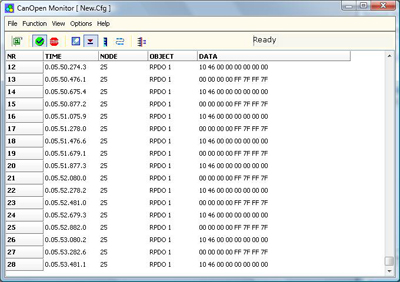

canopen Monitor
This form is aviable only if the Type of CAN bus is standard. It visualize all CANOpen frame that pass in the network. It visualize the: node, type (SDO or PDO), and the data.
