Ethernet-PROFIBUS 网关网桥

关键词: Ethernet-Profibus 网关网桥 Profibus

简介：网关 / Bridge 转换器 from PROFIBUS from/to Ethernet The series of these 网关s allow to convert the PROFIBUS protocol in the protocol Ethernet TCP/IP or UDP . With the device xGate-HD67563M you convert the Ethernet TCP/IP or UDP protocol in the protocol PROFIBUS Master . The device acts as ...
品牌	ADF
产地	Italy
型号	PXF2238
折扣	其他电询

咨询专家:

	黄工-工业总线-工业自动化-实时仿真 ID：2937
	机电电子工程专业硕士，机械设计制造及其自动化/计算机双学士，高级工程师具有丰富的从业、管理经验，曾在机电工程公司，资深设计代理公司工作。历任组织、经理等岗位，同时具有深厚的理论基础和项目项目研发经历。...
	[MORE]

	赵工-总线系统-嵌入式系统-工业自动化 ID：2940
	机械电子工程，嵌入式系统专家，高级工程师嵌入式项目开发，ARM，Freescale，Infilion等系列单片机系统开发，DSP嵌入式系统开发，FPGA系统开发，项目经验丰富。 ...
	[MORE]

产品说明:

网关 / Bridge 转换器

from Profibus from/to Ethernet

The series of these 网关s allow to convert the Profibus protocol in the protocol Ethernet TCP/IP or UDP .

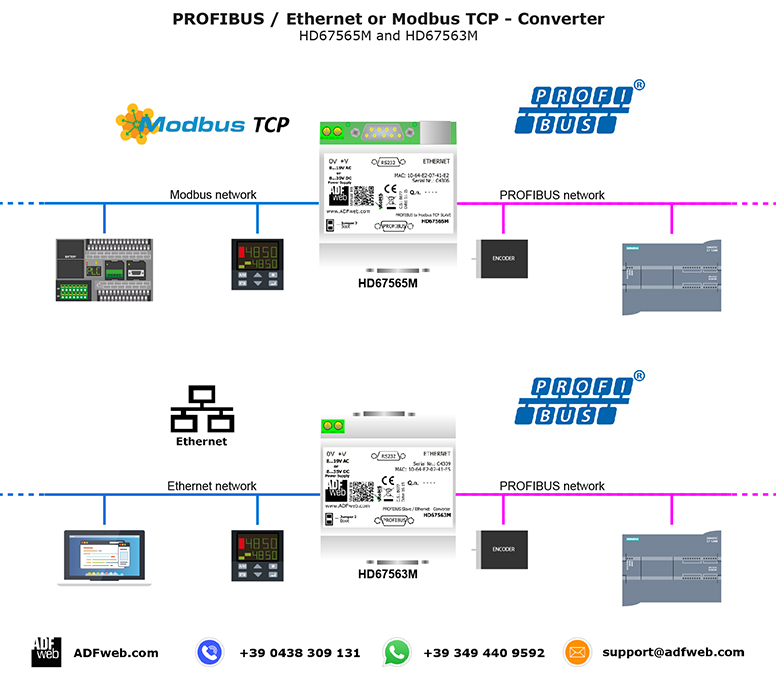

With the device xgate-HD67563M you convert the Ethernet TCP/IP or UDP protocol in the protocol Profibus Master . The device acts as a slave on the side of Profibus.

The gateway xgate-HD67575-A1 is able to convert the Ethernet TCP/IP or UDP protocol in the protocol profibus Slave . The device acts as a Master on the side Profibus.

L ' xgate-HD67576-A1 coupled to the device xGate-HD67575-A1 is used to extend a line PROFOBUS through Ethernet.

By the same logic is possible to convert the profibus protocol in to modbus TCP protocol whether master or slave.
see
xGate-HD67564M
xGate-HD67565M
xGate-HD67579-A1

ADVANTAGES :

- Low-cost
- Immediate configuration
- Galvanic isolation
- 超宽温度范围
- DIN rail mounting
- TCP / UDP variable with software
- Wide range of input voltage

订货号	Price info	Details	描述	用户手册	操作温度
Series profibus from/to Ethernet
xgate-HD67563M		View	profibus Slave / Ethernet - 转换器 ( 外壳类型: B, Terminal Blocks 连接头)		-40° to +85°
xgate-HD67575-A1		View	profibus Master / Ethernet - 转换器 ( 外壳类型: A, Terminal Blocks 连接头)		-40° to +85°
xgate-HD67576-A1		View	profibus Master / Ethernet - 转换器 ( 格式转化of the Profibus frame: 透明Tunnelling )		-40° to +85°
Series profibus from/to modbus
xgate-HD67564M		View	profibus Slave / modbus TCP Master - 转换器 ( 外壳类型: B, Terminal Blocks 连接头)		-40° to +85°
xgate-HD67565M		View	profibus Slave / modbus TCP Slave - 转换器 ( 外壳类型: B, Terminal Blocks 连接头)		-40° to +85°
xgate-HD67579-A1		View	profibus Master / modbus TCP Slave - 转换器 ( 外壳类型: A, Terminal Blocks 连接头)		-40° to +85°
Tools Accessories
SW67575-Tool	free download		Software profibus Master Tool

Accessories:

订货号	描述	Details
xgate-AC34001	供电220/12V AC 50/60Hz	View
xGate-AC34002	供电110/12V 50/60Hz	View
xGate-AC34107	Null Modem Cable, Fem/Fem, DSub 9 Pin, 1.8 m	View
xGate-AC34114	Null Modem Cable, Fem/Fem, DSub 9 Pin, 5 m	View
