DeviceNet-Optic-fibres网关网桥

关键词: devicenet-Optic-fibres网关网桥


简介：Fiber Optic Bridge and Repeater These Optic Fiber devices are designed to extend CAN, canopen, devicenet, J1939, CAN 2.0A and CAN2.0B networks using the optic fibers, without repeaters. The series F and FSX CAN bus devices are designed to extend high CAN bus signals over Multi-Modal fiber optic, providing RFI and electrical insula...
品 牌 ADF ADF
产 地 Italy
型 号 PXF2225
折 扣 其他电询

Fiber Optic
Bridge and Repeater

These Optic Fiber devices are designed to extend CAN, canopen, devicenet, J1939, CAN 2.0A and CAN2.0B networks using the optic fibers, without repeaters.
The series F and FSX CAN bus devices are designed to extend high CAN bus signals over Multi-Modal fiber optic, providing RFI and electrical insulation.

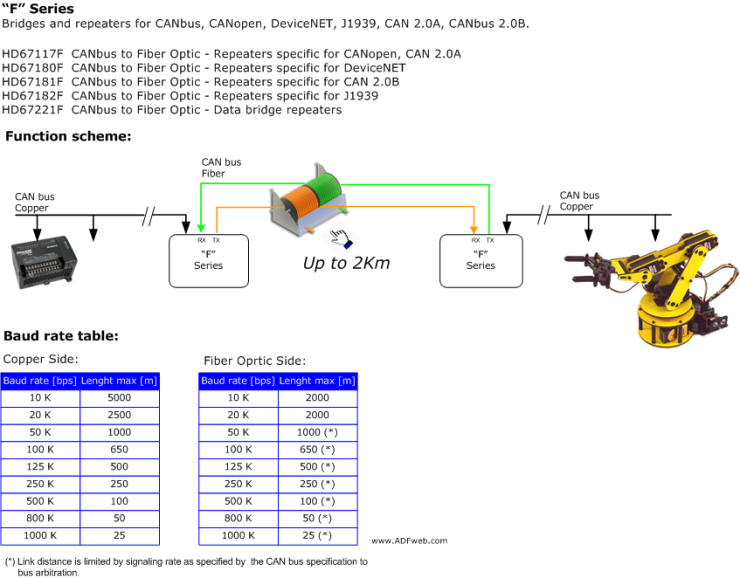

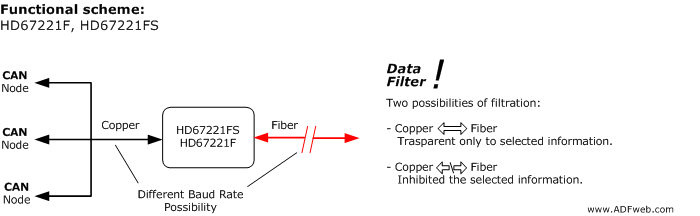

The HD67221F and the HD67221FS are CAN repeaters with filter data configurable by software. It means that it is possible to filter the CAN data and choose the CAN frames that can be transmitted or not.

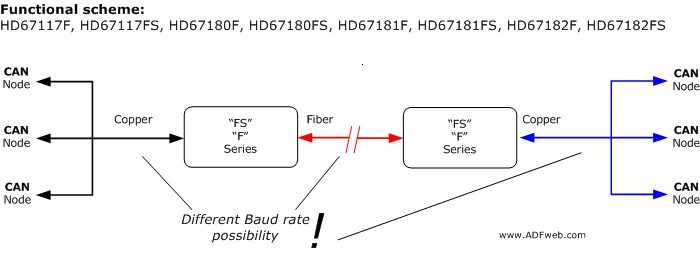

The HD67181F and the HD67181FSX are generic CAN repeaters that allows to extend a CAN network through Multi-Modal fiber optic.

The HD67117F and the HD67117FSX are CAN repeaters, specific for canopen protocol. The HD67182F and the HD67182FSX are CAN repeaters, specific for J1939 and NMEA 2000 protocols.

The HD67180F and the HD67180FSX are CAN repeaters, specific for devicenet protocol.

With the devices described previously, the possible connection topology is Point-To-Point (see diagrams on the right).

The HD67701 and the HD67702 are devices that allow to extend the CAN networks through Multi-Modal fiber or Mono-Modal fiber or copper (Ethernet cable). This different type connections are possible thank the SFPs (Small Factor Pluggable): these are particular interchangeable modules that allow to change the type of cable and the maximum viable distance (160 – 80 – 40 – 20 – 10 – 2 km). In is possible to buy this devices with the SFP mounted or without.

For more technical information, please see the documentation

With the HD67701 is possible to make a Point-To-Point connection or a Single Loop (see the diagrams on the right).

With the HD67702 is possible to make a Multi-Drop connection or a Double Loop (see the diagrams on the right).


Order Code Price Info Details Description User manual Operating Temperature
Series CAN Optic fibres repeater and Bridge
HD67221F View CAN / Optic Fiber - Repeater - Extender bus line
(With filter data configurable)		 -40° to +85°
HD67221FS View CAN / Optic Fiber - Repeater - Extender bus line
(With filter data configurable) ( High Performance )		 -40° to +85°
Series CAN Optic fibres repeater
HD67181F View CAN / Optic Fiber - Repeater - Extender bus line -40° to +85°
HD67181FSX View CAN / Optic Fiber - Repeater - Extender bus line
( High Performance )		 -40° to +85°
Series Optic Fibres canopen Repeater
HD67117F View canopen / Optic Fiber - Repeater - Extender bus line -40° to +85°
HD67117FSX View canopen / Optic Fiber - Repeater - Extender bus line
( High Performance )		 -40° to +85°
Series Optic Fibres J1939 Repeater
HD67182F View J1939 and NMEA 2000 / Optic Fiber - Repeater - Extender bus line -40° to +85°
HD67182FSX View J1939 and NMEA 2000 / Optic Fiber - Repeater - Extender bus line
( High Performance ) 		-40° to +85°
Series Optic Fibres devicenet Repeater
HD67180F View devicenet / Optic Fiber - Repeater - Extender bus line -40° to +85°
HD67180FSX View devicenet / Optic Fiber - Repeater - Extender bus line
( High Performance ) 		-40° to +85°
Series Converter CAN from/to Single-Mode Optic Fibres
HD67701-C-0-H5S View CAN / Single-Mode Optic Fiber - Converter
(Daisy chain fiber connections allowed: Single Loop, Point to point ) 		-40° to +85°
HD67702-C-0-H5S-H5S View CAN / Single-Mode Optic Fiber - Converter
(Daisy chain fiber connections allowed: Multi-drop, redundant Double loop, Point to Point) 		-40° to +85°











Accessories:
Order Code   Description Details
AC34001   Power Supply 220/12V AC 50/60Hz View
AC34002   Power Supply 110/12V 50/60Hz View
AC34107   Null Modem Cable, Fem/Fem, DSub 9 Pin, 1.8 m View
AC34114   Null Modem Cable, Fem/Fem, DSub 9 Pin, 5 m View
AC34121   Patch Cable Fibers ST/ST 2x2 Meters View
AC34122   Patch Cable Fibers ST/ST 2x10 Meters View
